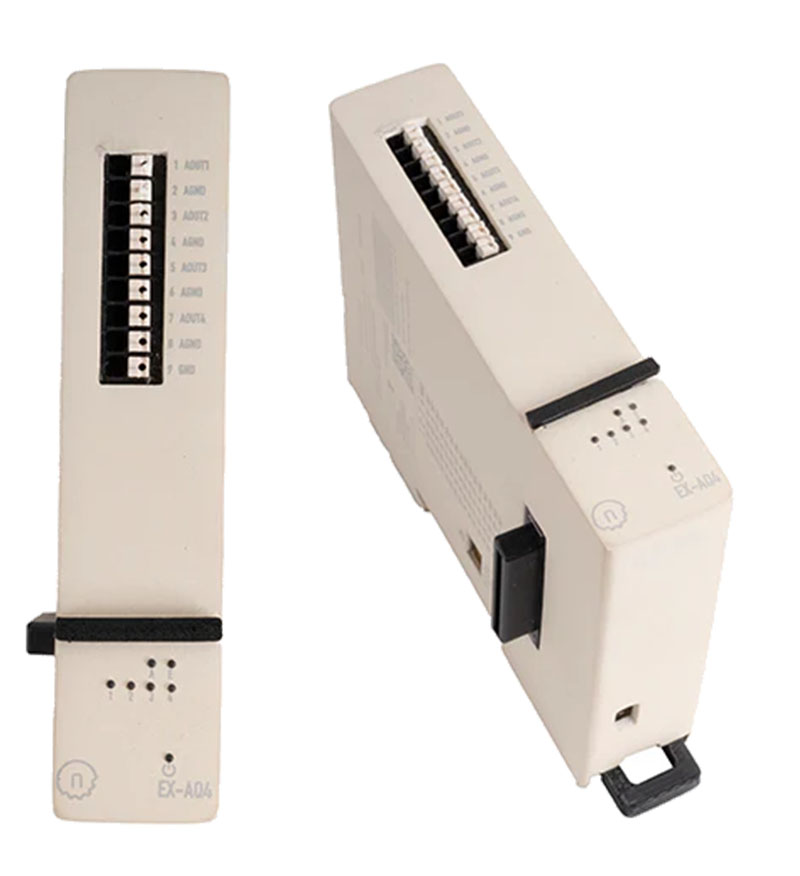

NORVI X-AQ4 (Extension Modul f. Norvi X, 4x Analog Output)

NORVI X-AQ4 (Extension Modul f. Norvi X, 4x Analog Output)
  • Norvi X Series !
  • 4x Analog Outputs !
  • Extension !

  • 4-Channel Analog Output
  • 12-bit DAC Resolution
  • 0-10V DC / 4-20mA Support
  • I²C Expansion Bus
  • DIP Switch Addressing
  • Status LED indicators for each input channel
  • Plug-and-play connection to NORVI X CPU module via expansion bus
  • DIN-rail Mounting
[more]

Share

39.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart

  • 4-Channel Analog Output
  • 12-bit DAC Resolution
  • 0-10V DC / 4-20mA Support
  • I²C Expansion Bus
  • DIP Switch Addressing
  • Status LED indicators for each input channel
  • Plug-and-play connection to NORVI X CPU module via expansion bus
  • DIN-rail Mounting


The NORVI X-AQ4 is a high-performance 4-channel analog output expansion module for the NORVI X Modular Controller, enabling precise control of industrial actuators, VFDs, and process valves.

Featuring an onboard STM32 microcontroller for dedicated 12-bit DAC management, the module offloads timing-critical signal generation from the main CPU to ensure superior stability. It provides four independent outputs configurable for 0-10V or 4-20mA signals, each protected by active filtering and TVS diodes for maximum noise immunity and surge protection in harsh industrial environments.



Range of product NORVI X
Product type /
Model		 Expansion Module f. NORVI X Series
NORVI X-AQ4
Certifications EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C
Dimmensions 81 x 104 x 23 mm
Mounting DIN RAIL
Terminal Type Push-in terminal
Envirement IP20
Operating altitude: 0-2000 meters
Operating Temperature: -10 ... - +85°C
Shock resistance: 15 gn for 11ms
Resistance to electrostatic discharge: 4kV on contact / 8kV on air
Supply Voltage (V) 24V / 80mA
I/O Specification
Output Channels 4 Channels
Resolution 12-bit
Output Ranges 0-10V DC / 4-20mA (Software Configurable)
Debugging Micro-USB (For Debugging & Firmware Only)
Communication I2C
Microcontroller STM32 Series (Internal Bridge)
Power Supply 24V DC (via Expansion Bus)
Internal Interface High-Speed SPI (MCU to DAC Output Stage)
Data sheet Download (PDF)
