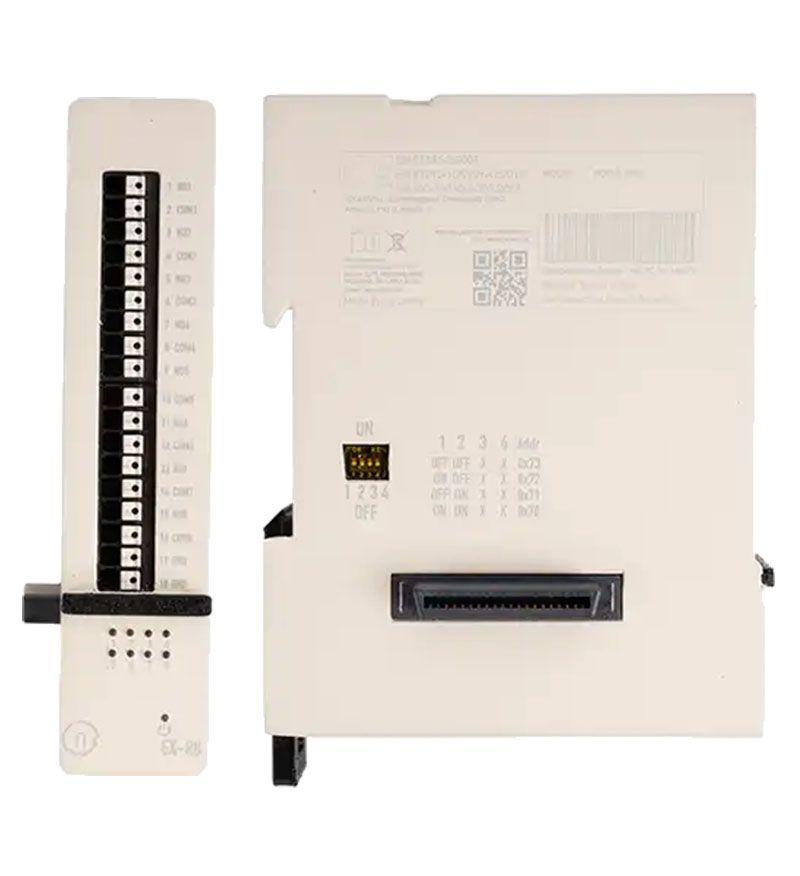

NORVI X-R8 (Extension Modul f. Norvi X, 8x Relay Outputs)

NORVI X-R8 (Extension Modul f. Norvi X, 8x Relay Outputs)
  • Norvi X Series !
  • 8x Relay Output !
  • Extension !

  • 8 × Electromechanical relay outputs (COM / NO)
  • Controlled via PCA9538 I²C I/O expander
  • Industrial relay with high endurance
  • Suitable for AC and DC load switching
  • Compact DIN-rail compatible expansion module
  • Designed for NORVI X modular architecture
[more]

Share

59.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart

  • 8 × Electromechanical relay outputs (COM / NO)
  • Controlled via PCA9538 I²C I/O expander
  • Industrial relay with high endurance
  • Suitable for AC and DC load switching
  • Compact DIN-rail compatible expansion module
  • Designed for NORVI X modular architecture


The NORVI X-R8 is a 8-channel relay output expansion module designed for the NORVI X modular controller platform. It provides electrically isolated relay outputs suitable for industrial control, automation, and power switching applications.

Relay outputs are controlled via an I²C I/O expander (PCA9538), allowing reliable expansion with minimal MCU I/O usage.



Range of product NORVI X
Product type /
Model		 Expansion Module f. NORVI X Series
NORVI X-R8
Certifications EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C
Dimmensions 81 x 104 x 23 mm
Mounting DIN RAIL
Terminal Type Push-in terminal
Envirement IP20
Operating altitude: 0-2000 meters
Operating Temperature: -10 ... - +85°C
Shock resistance: 15 gn for 11ms
Resistance to electrostatic discharge: 4kV on contact / 8kV on air
Supply Voltage (V) 24V / 80mA
I/O Specification
Number of Outputs 8x SPST Relays Outputs
Output Type Single Pole Normally Open Relay
Insulation System Class F
IEC 61810 Standard
Rated Switching Voltage 250 VAC / 30 VDC
Maximum Switching Voltage 277 VAC / 5 A
Breaking Capacity (Max) 1250 VA (AC) | 750 W (DC)
Contact Material AgNi, gold-plated
Initial Contact Resistance ≤ 30 mΩ (5 VDC, 100 mA)
Mechanical Endurance 10 × 10⁶ operations
Power Supply 24 V DC (shared with CPU via expansion port)
Communication Direct GPIO / Internal Expansion Bus
Push-in Terminal Block
